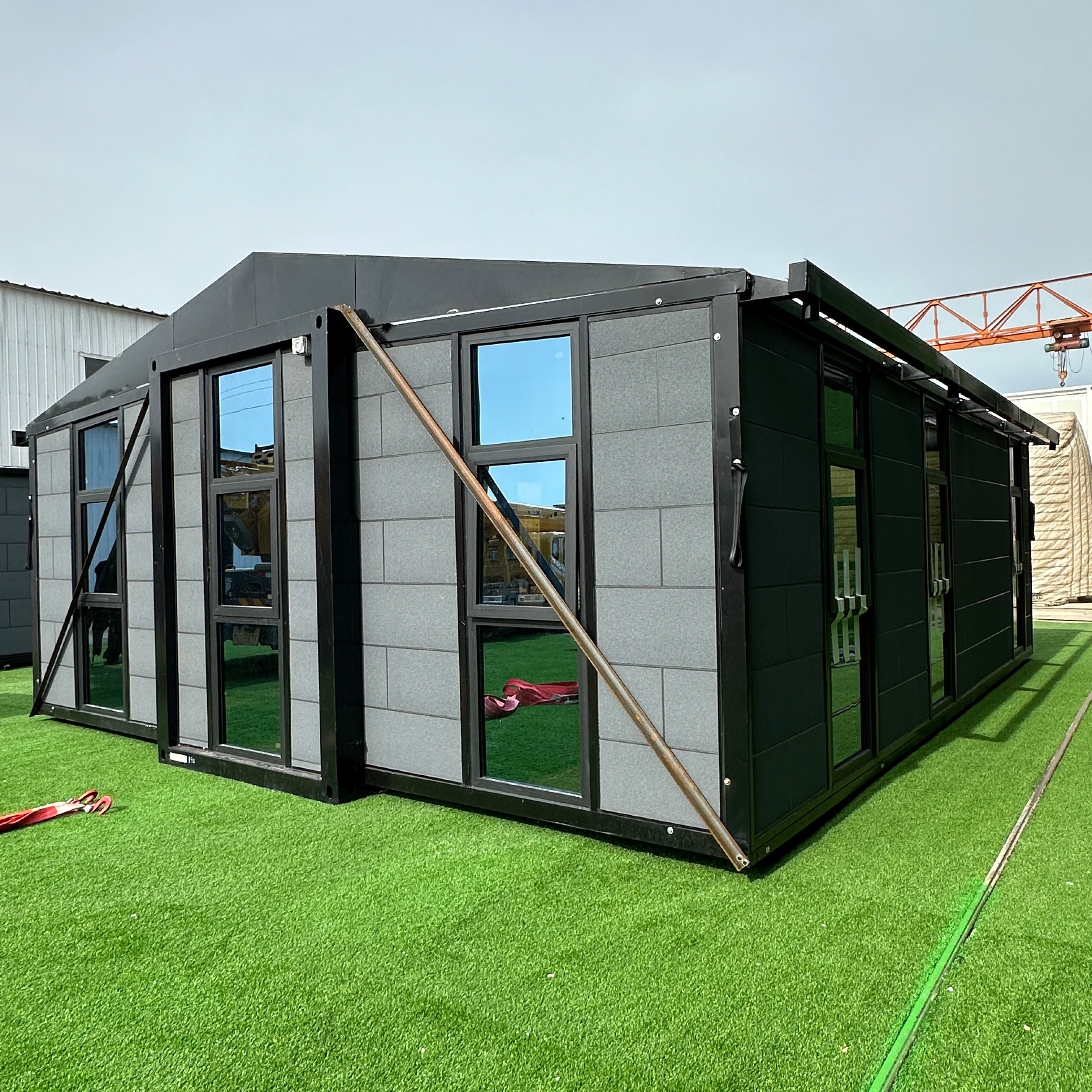

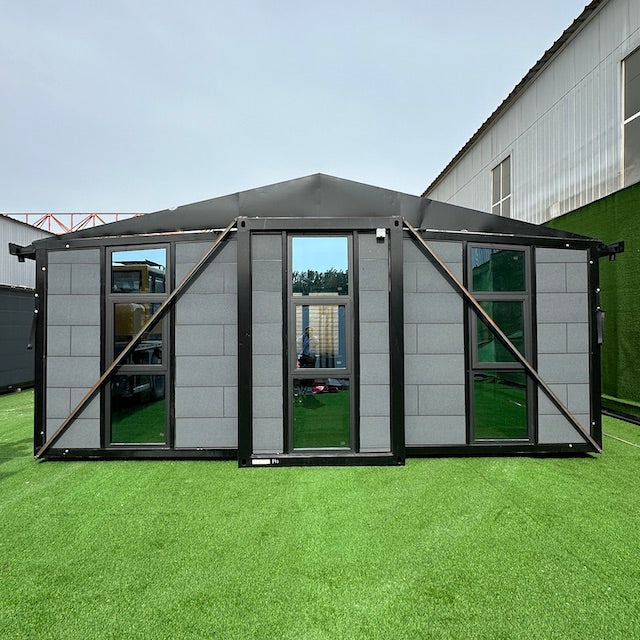

20ft 270 Series Australia Certified with Gable Roof

20ft 270 Series Australia Certified with Gable Roof

$58,000.00 AUD
$58,000.00 AUD
Sale Sold out
Shipping calculated at checkout.
Options

Designed and Engineered Locally
Our modular homes are designed and engineered by certified Australian engineers, ensuring top-tier quality and compliance with local standards.

Comprehensive Certification, turn key experience
We provide all necessary council and engineering forms, along with a full certification process if required. Rest assured, our homes are fully legal for both commercial and private use, including rentals.

Exceptional Build Quality

  • Dimensions: Exterior height of 3000mm, with spacious internal heights of 2750mm.
  • Plumbing: Locally installed and watermarked plumbing by qualified Australian plumbers.
  • Electrical: SAA approved wiring and GPOs, inspected and installed by certified electricians.

Robust and Efficient

  • Wind Rating: N3 rating, suitable for a wide range of Australian weather conditions.
  • Energy Efficiency: Rated 7 stars, ensuring excellent energy savings and comfort.

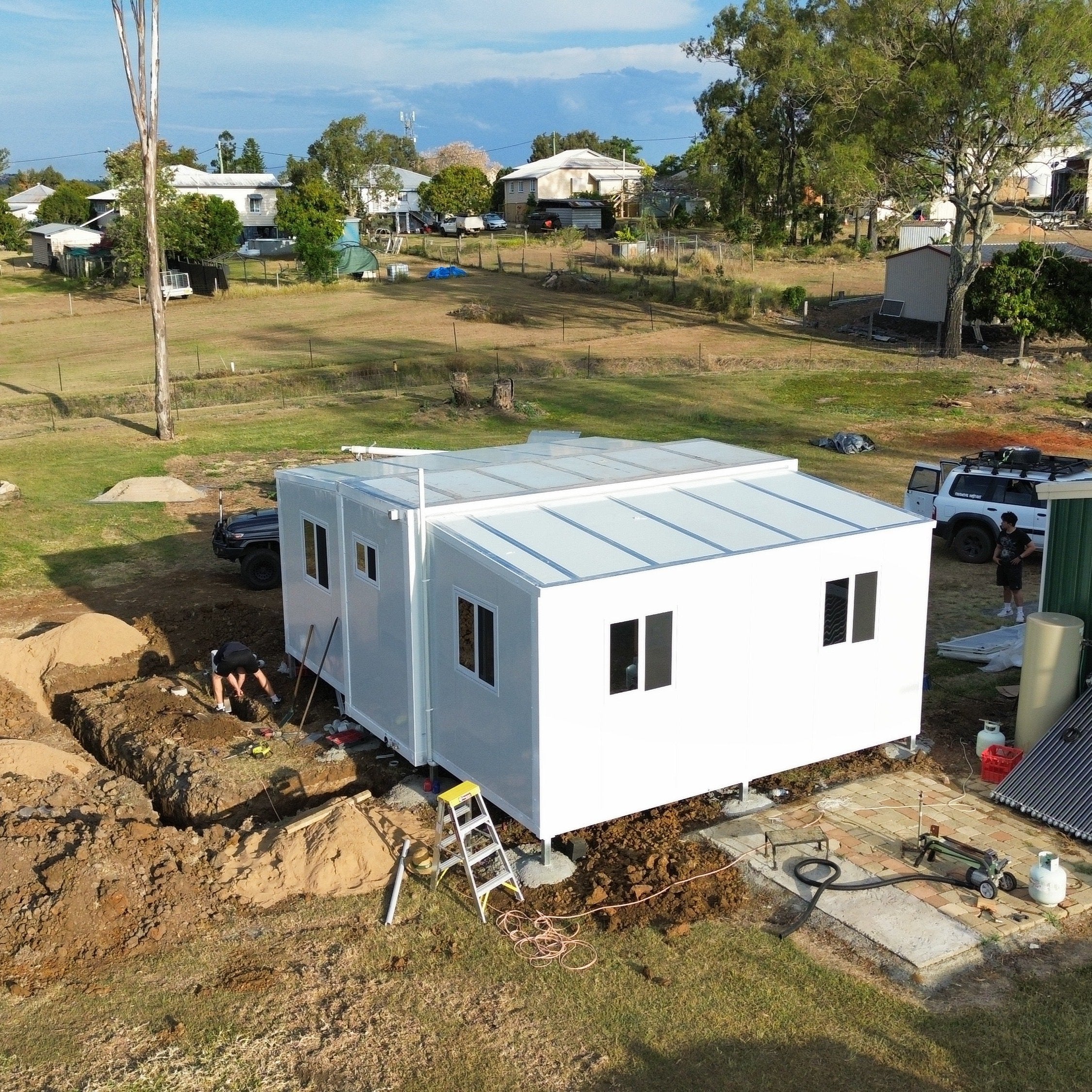

  • Foundation: Australian certified concrete/screw piers footing drawings, tailored to site-specific requirements.

Local Expertise and Compliance
Built to meet rigorous Australian standards, our modular homes combine durability, efficiency, and comfort, making them an ideal choice for your next project.

View full details

Get Your Free Quote Today

Customise your home and receive our delivered to door price!

Get your quote today!

Complete customised for each project

Our customization process ensures every project meets council requirements and client preferences. We collaborate closely to tailor designs, providing expert guidance for seamless approvals and a personalized, compliant living solution.

Contact us today

Floor plans

  • One bedroom

  • Two bedroom
Customisable Contact us Today

SAA Approved Electrical System

- Australian standard concealed electrical box

- Australian standard sockets 12-15 units. International socket available

- CEE industrial plug: 220V，50Hz，3P32A×1

- Fully wired according to Australian standards

WaterMarked Plumbing system

- Pre plumbed WaterMarked Australian standard plumbing

- 100mm PVC septic tank

- 50mm grey water outlet

- Pressure tested hot and cold water inlet

Contact us for more informaiton

Product Specifications

Dimension

Expanded size:

5600mm x 6950mm x 3000mm

2750mm internal height

39 square meters

Loading size:

5600mm x 2000mm x 3000mm

Electrical

Electrical: SAA approved wiring and GPOs, inspected and installed by certified electricians.

- Australian standard Concealed electrical box

- Australian standard sockets 12-15 units. International socket available

- CEE industrial plug: 220V，50Hz，3P32A×1

- Fully wired according to Australian standards

- 15W LED round ceiling light, 5 sets.

Plumbing

Plumbing: Locally installed and watermarked plumbing by qualified Australian plumbers.

- Toilet

- Shower room

- Wash basin

- Ventilation window

- Water supply and drainage pipe fittings

Structural

Designed and Engineered Locally

Our modular homes are designed and engineered by certified Australian engineers, ensuring top-tier quality and compliance with local standards.

Main Frame:

Main beam 1 on the ground: 80mm*100mm square steel, galvanized beam 2.5mm thick; Main beam 2 on the ground: 180m special-shaped C-shaped steel, galvanized beam 2.5mm thick
Ground secondary beam: specification 60*40*1.5mm thick*9 galvanized square tubes or C-shaped steel;
Column: specification 210*150mm, galvanized 2.5mm thick;
Roof main beam 1: 80mm*100mm square steel, galvanized 2.0mm thick; Roof main beam 2: 140m special-shaped C-shaped steel, galvanized beam 2.5mm thick
Roof secondary beams 40*40*1.5mm thick*7 galvanized square tubes or U-shaped steel, 20*40*1.2 square tubes*2 pieces

Side wings frame:

P80*1.5mm special pipe/P65*1.5mm special pipe/L-shaped special galvanized steel plate, thickness 2.0mm
40*80*1.5mm rectangular tube/L25*25*1.0 angle steel

Panels

Wall Panels:

EPS composite board is 75mm

Roof Panels:

Roof tile steel single plate interlocking EPS composite plate

Roof insulation:

Glass wool rolled felt, thickness 60mm. None flammable

Flooring Panels

Flooring:

2mm PVC floor leather, hot melt caulking.

Structural panels:

18mm Cement fibre board

Windows and Doors

AU standard Glazing

Entrance door:

KFC aluminum alloy bi-fold push-pull, W1900mm×H2280mm, tempered glass.

Interior door:

Steel set door, W840mm×H2040mm, national standard fire door lock.

Windows:

Aluminium casement window with alloy sliding track. Size: 930mm×930mm
